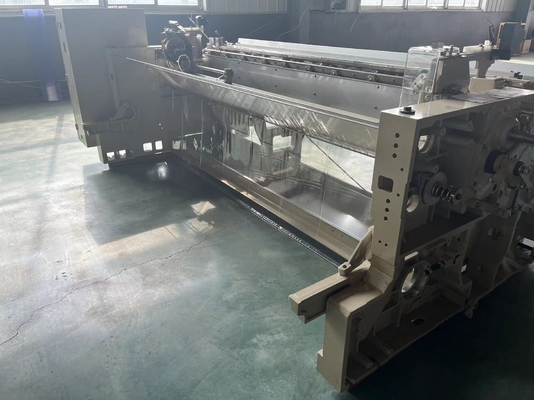

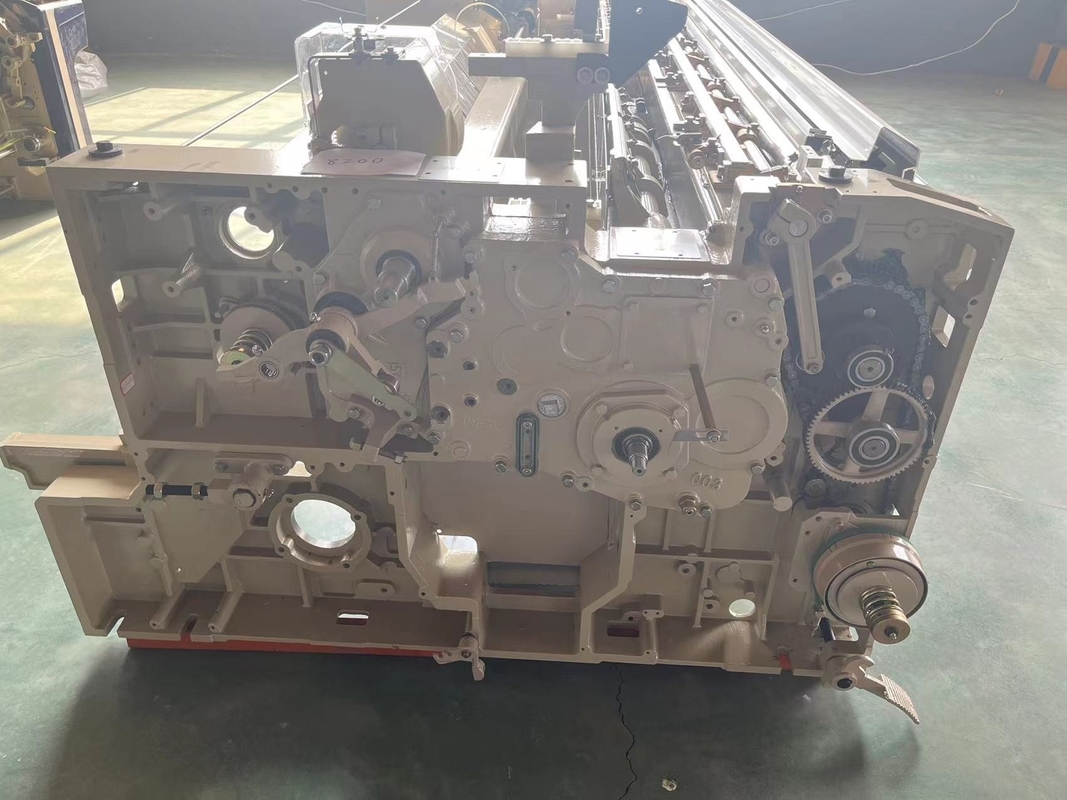

1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby

1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby

Large Image :  1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby

Product Details:
Place of Origin: Shandong, China
Brand Name: Rifeng
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $8,000.00 - $15600/sets
Packaging Details: shipping container or customer's request
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability: 10000 Set/Sets per Year
Contact Now

1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby

Description
Spinning Method: Water Jet Loom Type: Weaving Machine
Rotational Speed: Design Rotational Speed 500-700 RPM/SPLIT Automatic: Yes
Weight: 1700KG Power: 3.5kw, Electromagnet Brake Pan;
Reed Space: 190/210/230/280/340cm Water Pump Quantity: Single Pump Or Double Pump
Weft Insertion Method: Main Nozzle+auxiliary Nozzle, Use Unusual Reed, Electrmagnetic Control Shedding: Crank, Cam Dcbby
Let-off: Machanical Selvage: Planetary Gear
Motor: 1.8/2.2/2.8/3.5kw
Highlight:

1200 RPM Small Weaving Machine

,

double nozzle Small Weaving Machine

,

High speed water jet loom dobby

1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby



Product Overview
The 9100A series is developed on the basis of the water jet loom, and its transmission system, mechanical let-off, mechanical winding, opening and frame are the same as those of the water jet loom. The difference lies in the beating-up section, the centralized jet weft insertion and the man-machine interface replacement system. The successful development of this model has reduced the cost of user equipment. Simple fabrics can be made by using a casting machine, which is suitable for weaving cotton, polyester and blended fabrics.

1.Reed Space nominal∶190,210,230,280,340{cm)
2.Wet selection: mechanical Cr electric feeder (Single or double nozle electric feederl
3.Motor∶1.8IW,2.2KW,2.8KW,3.5KW.
Power: electromagnet brake pan;
4.Running speed: 500~700RPM
5.Weft insertion method: main nozzle+ auxiliary nozze, use unusual reed, electromagnetic control
6.Shedding:crank, cam dobby
7.Let-off:mechanical
8.Selage∶ planetan gear
9.Cutter.mechanical
10.Aurto-stop on broken weft,2 optical feeler; broken warp:6 lines electic contact bar reason for auto will be displayed on
screen.4 color led light; others: auto stop on broken twist and trash yarns.
FEATURES AT A GLANCE
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 0

1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 1
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 2
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 3
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 4
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 5
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 6
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 7
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 8
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 9
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 10
Company Profile
1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 11

1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 12

1200 RPM Small Weaving Machine Double Nozzle High Speed Water Jet Loom Dobby 13
FAQ
Q1. Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2. Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3. How about the after sale service?
1) We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make
compensation for our coustomers.
2) We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3) We will trace the goods from the production to selling,we will solve the problems in the selling for our coustomers.
Q4. When can I get a price?
We usually quote within 24hours after we get your inquiry.
Q5. Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
